VEK SP100 Veterinary Syringe Pump

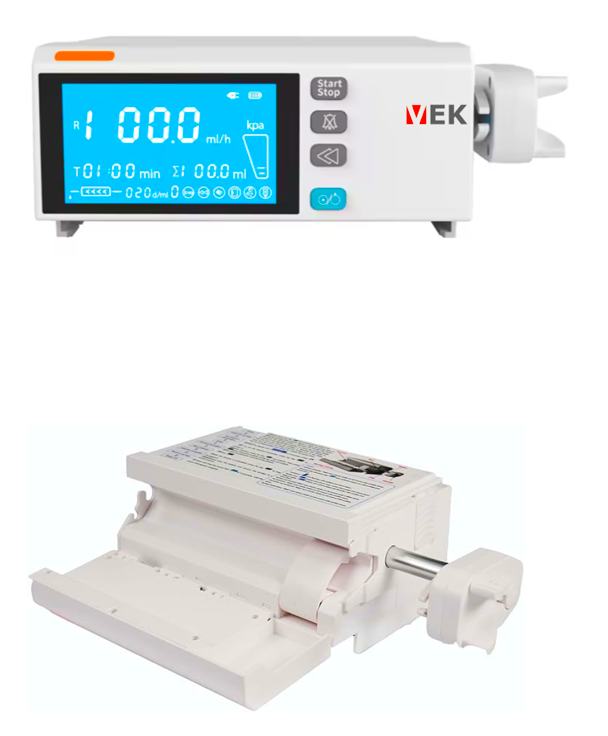

The VEK SP100 Veterinary Syringe Pump is engineered to deliver highly accurate and reliable medication administration for veterinary patients. Featuring a 4.3-inch color touchscreen, multiple infusion modes, and compatibility with a wide range of syringe sizes, it is an ideal solution for anesthesia, critical care, emergency medicine, and intensive care applications.
Key Features
- 4.3-inch color LCD touchscreen with intuitive user interface
- High-precision infusion accuracy (±2%)
- Compatible with multiple syringe brands
- Supports syringe sizes from 5 mL to 50/60 mL
- Multiple infusion modes for flexible clinical use
- Audible and visual alarm system
- Built-in rechargeable lithium battery
- Compact and lightweight design
Designed for Veterinary Medicine
The VEK SP100 provides precise control of intravenous drug administration, making it ideal for anesthetic agents, analgesics, vasoactive drugs, and continuous medication infusions where accuracy is essential.
Infusion Modes
- Rate Mode
- Rate + Time Mode
- Rate + VTBI (Volume To Be Infused) Mode
Technical Specifications
| Specification | Value |
|---|---|
| Display | 4.3-inch Color LCD Touchscreen |
| Compatible Syringes | 5 mL, 10 mL, 20 mL, 30 mL, 50/60 mL (multiple syringe brands) |
| Infusion Accuracy | ±2% (after proper syringe calibration) |
| Infusion Modes | Rate Mode, Rate + Time, Rate + VTBI |
| Flow Rate |
5 mL syringe: 0.1–150 mL/h 10 mL syringe: 0.1–300 mL/h 20 mL syringe: 0.1–600 mL/h 30 mL syringe: 0.1–900 mL/h 50/60 mL syringe: 0.1–1500 mL/h |
| Flow Rate Resolution |
0.1 mL/h (low range) 1 mL/h (higher flow rates) |
| VTBI (Volume To Be Infused) | 0.1–9999 mL |
| KVO Rate | 0.1 mL/h |
| Preset Time | 1 minute to 99 hours 59 minutes |
| Power Supply | AC 100–240 V, 50/60 Hz External DC 7.4 V |
| Battery | Built-in rechargeable lithium battery (1800 mAh) |
| Battery Runtime | Approximately 5 hours |
| Dimensions | 200 × 155.5 × 97 mm |
Safety Features
- Audible and visual alarm system
- Syringe not installed alarm
- Occlusion alarm
- Near-end infusion alarm
- Infusion complete alarm
- Low battery alarm
- No operation reminder
- System fault alarm
Applications
- Veterinary anesthesia
- Critical care and ICU
- Emergency medicine
- Continuous drug infusion
- Analgesia
- Fluid therapy requiring precise dosing
- Long-term medication administration
